Cutter Suction Dredger rau Chaw nres nkoj Dredging

Lub Cutter Suction Dredger rau Chaw nres nkoj Dredging yog ib qho ntawm cov khoom ua tau zoo ntawm Qingzhou Jinqi Mining Machinery Co., Ltd. Yog tias koj xav tau lub Hoobkas ncaj nqe thiab cov kev pabcuam, thov hu rau peb.

Xa lus nug

Product Description

Lub Cutter Suction Dredger rau Chaw nres nkoj Dredging yog tsim los ntawm Qingzhou Jinqi Mining Machinery Co., Ltd. Los ntawm kev siv lub taub hau tig los txiav cov dej hauv qab dej thiab kev sib koom tes nrog cov av nkos kom nqus thiab thauj cov av nkos, nws ua tiav cov av nkos, kev nthuav dav, thiab kev sib sib zog nqus ntawm cov chaw nres nkoj, ua cov khoom siv tseem ceeb rau niaj hnub chaw nres nkoj tu thiab dredging. Yog tias koj xav tau kev yuav khoom no, thov hu rau Jinqi. Tam sim no peb tab tom muab kev muag khoom ncaj qha ntawm lub tshuab nqus tsev twj dredgers.

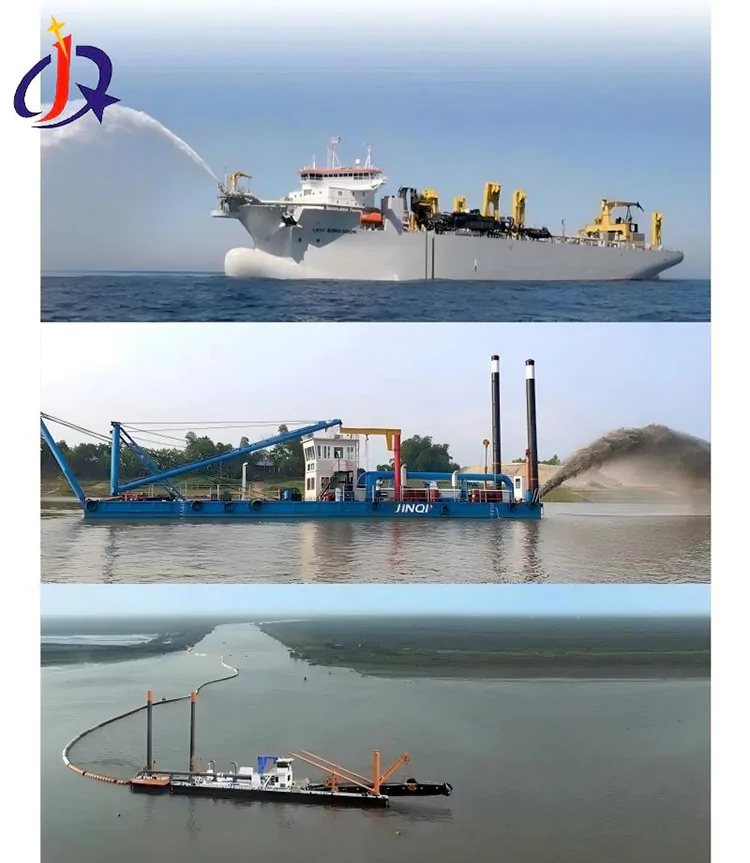

Cutter Suction Dredger for Port Dredging

Cov yam ntxwv thiab qhov zoo

Ua haujlwm zoo thiab txuas ntxiv:

Kev sib xyaw ua ke ntawm kev khawb, kev thauj mus los, thiab cov av nkos tau ua tiav hauv ib txoj haujlwm tas mus li, tshem tawm qhov xav tau ntawm cov khoom siv tsis tu ncua thiab hloov pauv, ua rau muaj kev ua haujlwm siab.

Haum rau qhov loj-scale, ntev-ntev dredging tej yaam num, xws li chaw nres nkoj channel tu thiab ntug hiav txwv reclamation.

Strong Adaptability:

Muaj peev xwm tuav cov av nkos, av nplaum, xuab zeb, gravel, thiab txawm tias pob zeb mos (nrog rau lub taub hau tshwj xeeb).

Adapts rau cov av sib txawv los ntawm kev hloov hom cutter taub hau.

Precise Positioning:

Muab cov pawg hlau tso rau ntawm lub stern, thaum cov thauj tog rau nkoj lossis lwm pawg yog nruab rau ntawm hneev nti. Precise viav vias thiab lateral txav yog ua tiav los ntawm kev siv lub nkoj txav winch, kom ntseeg tau tias qhov chaw tiaj tus dredging.

Tus Nqi-Kev Ua Tau Zoo:

Tsawg nqi ib chav tsev ntawm dredged ntim, ua rau nws haum rau qhov chaw nres nkoj ib puag ncig nrog luv luv kev thauj mus los deb thiab me nthwv dej.

Exceptional Long-Distance Transportation Peev Xwm:

Nruab nrog cov twj siv hluav taws xob muaj zog, ua kom muaj kev thauj mus los ntawm cov khoom siv dredged.

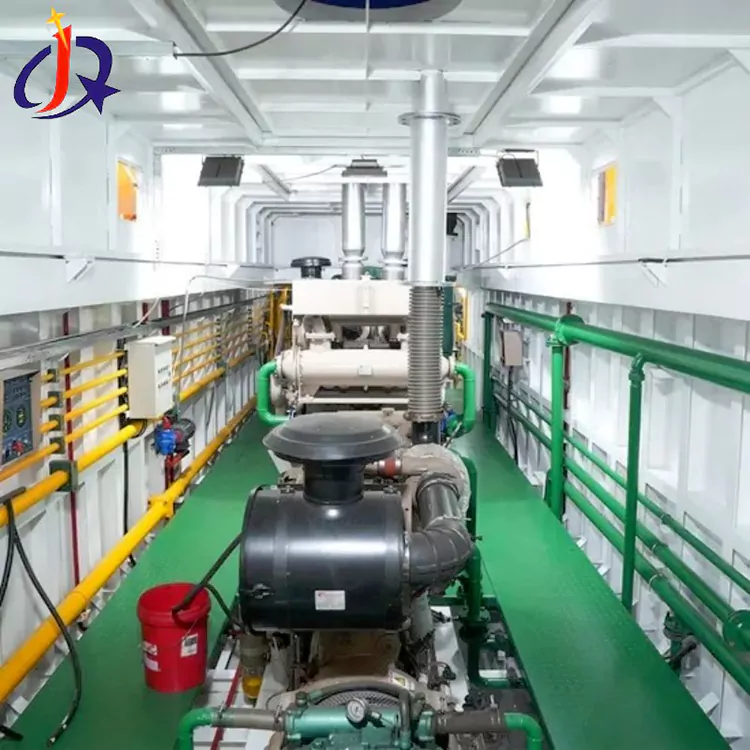

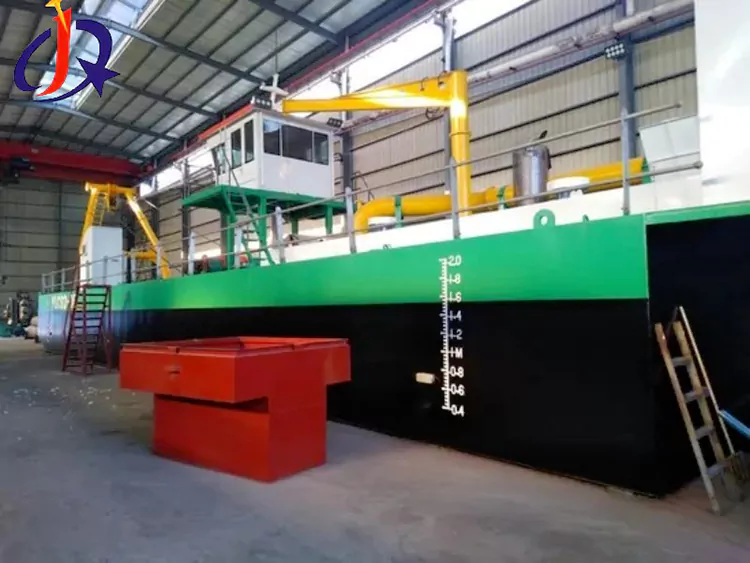

Cutter Suction Dredger for Port Dredging

Technical Parameters

Qauv	Dredging Qhov tob	Tso tawm Nyob deb	Main Cav Fais Fab	Dredged Mat.
CSD 6024	14m ua	4000 m	Cummins 1864 KW TSI	Cov av tawv, xuab zeb-Gravel, Coral Reef, Slurry, Coarse Sand
TSO 5522	14m ua	1500-2000 m	Tom ntej: Cummins 1193KW-1342KW	Xuab zeb, Silt, Pob zeb, Coral Reef
CSD 5020	14m ua	1500 m	Tom ntej: Cummins 895KW-1193KW	Xuab zeb, Silt
TSO 4518	14m ua	1500 m	Tom ntej: Cummins 895 KW	Xuab zeb, Silt
CSD 4016	14m ua	1500 m	Tom ntej: Cummins 721 KW	Xuab zeb, Silt
CSD 3010	10 m	1000 m	Cummins 447 kW	Xuab zeb, Silt
TSI 2508	8m ua	1000 m	Tom ntej: Cummins 298 KW	Xuab zeb, Silt
CSD 2006	6m ua	600 m	Cummins 280 KW	Xuab zeb, Silt
CSD 1504	4-5 m	300-400 m	Cummins 115 KW	Xuab zeb, Silt

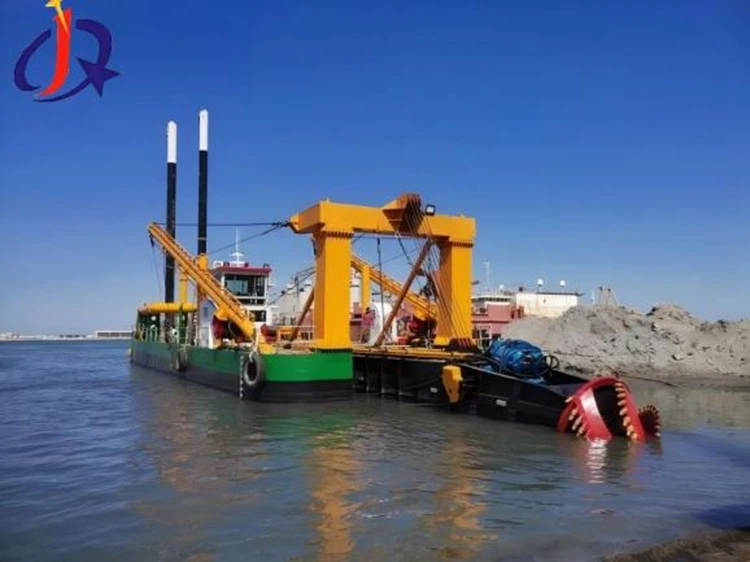

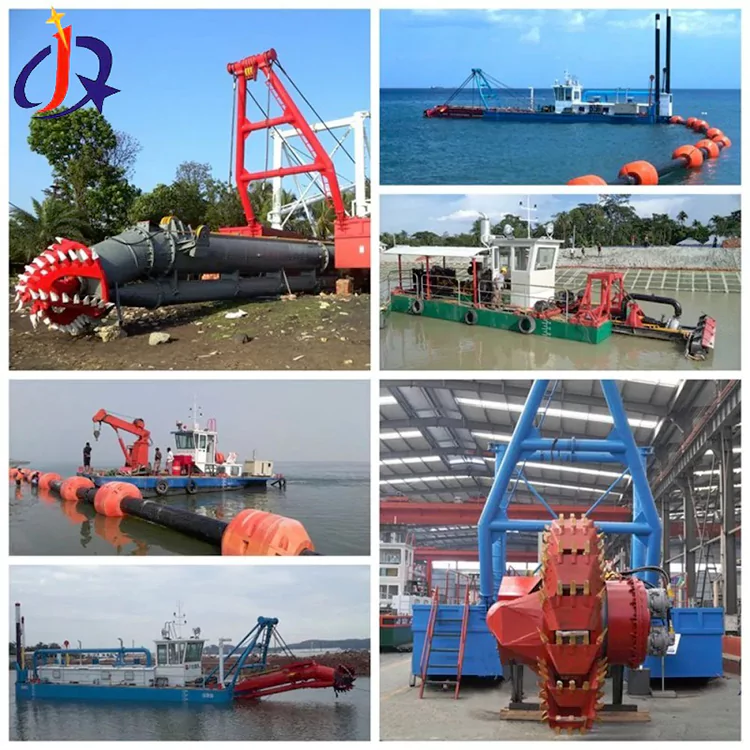

Cutter Suction Dredger for Port Dredging

Cov duab nthuav dav

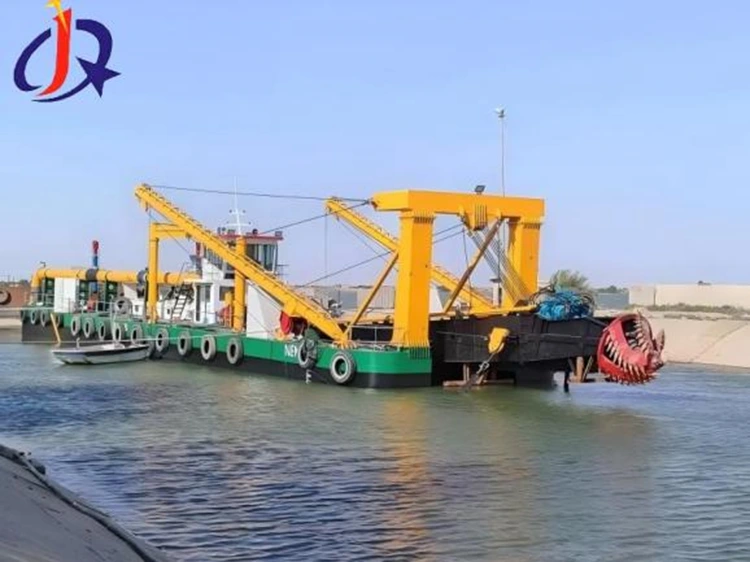

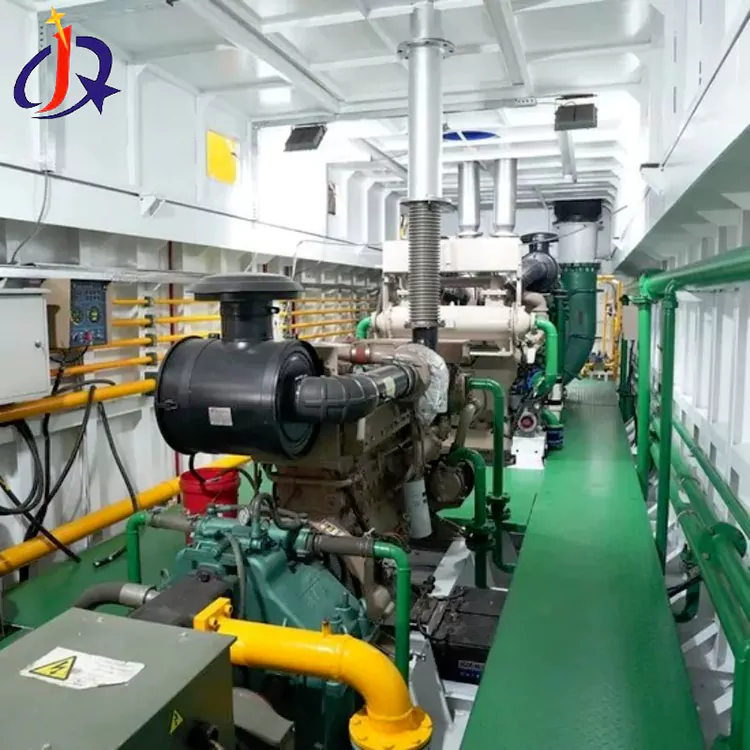

Cutter Suction Dredger for Port Dredging

Yog tias koj txaus siab rau Cutter Suction Dredger rau Chaw nres nkoj Dredging, thov hu rau peb!

Hot Tags: Cutter Suction Dredger rau Chaw nres nkoj Dredging, Tuam Tshoj, Chaw tsim tshuaj paus, chaw muag khoom, Hoobkas
