Cutter Suction Dredging Khoom

Koj tuaj yeem ntseeg siab xaiv Qingzhou Jinqi Mining Machinery Co., Ltd. raws li koj cov chaw tsim khoom thiab cov khoom siv ntawm cov khoom siv cutter suction dredging. Peb muaj 30,000 square meter Hoobkas thiab muaj peev xwm customization. Peb cov cuab yeej siv tau zoo heev, yooj yim los tswj, thiab tus nqi sib tw.

Xa lus nug

Product Description

Qingzhou Jinqi Mining Machinery Co., Ltd. yog lub ntiaj teb nto moo tsum ntawm Cutter Suction Dredging Equipment. Cov cuab yeej no feem ntau yog hais txog kev txiav cov tshuab nqus dej, uas feem ntau siv cov cuab yeej siv rau cov dej dredging, xuab zeb mining hauv cov xuab zeb yards, kub panning thiab ntxhia ua, thiab chaw nres nkoj thiab dej dredging.

Cutter Suction Dredging Equipment

Khoom Parameters

Qauv	Dredging Muaj peev xwm	Dredging Qhov tob	Tso tawm Nyob deb	Tso tawm Pipe Dia.	Main Cav Fais Fab
TIAB SA 7525	7000 m³ / h	15-25m, Kev them nyiaj yug Customization	3000 m	750 hli	2 900 kWm
CSD 6024	5500-6000 m³ / h	14m ua	4000 m	600 hli	Cummins 1864 KW TSI
TSO 5522	4000-4500 m³ / h	14m ua	1500-2000 m	550 hli	Tom ntej: Cummins 1193KW-1342KW
CSD 5020	3500-4000 m³ / h	14m ua	1500 m	550 hli	Tom ntej: Cummins 895KW-1193KW
TSO 4518	3000 m³ / h	14m ua	1500 m	450 hli	Tom ntej: Cummins 895 KW
CSD 4016	2200 m³ / h	14m ua	1500 m	400 hli	Tom ntej: Cummins 721 KW
CSD 3010	1400 m³ / h	10 m	1000 m	300 hli	Cummins 447 kW
TSI 2508	900 m³ / h	8m ua	1000 m	250 hli	Tom ntej: Cummins 298 KW
CSD 2006	500 m³ / h	6m ua	600 m	200 hli	Cummins 280 KW
CSD 1504	240 m³ / h	4-5 m	300-400 m	150 hli	Cummins 115 KW

Qingzhou Jinqi Mining Machinery Co., Ltd. nruj me ntsis ua raws li lub tswv yim ntawm "ib lub lag luam, ib qho kev daws teeb meem", thiab muab tso rau pem hauv ntej cov cuab yeej teeb tsa tsim nyog rau cov neeg siv khoom raws li lawv cov kev xav tau tiag tiag kom tau raws li qhov kev thov rau cov khoom siv Cutter Suction Dredging.

Cutter Suction Dredging Equipment

Qingzhou Jinqi Mining Machinery Co., Ltd. tau cog lus los muab cov neeg siv khoom zoo tshaj plaws, nruab nrog cov nqi tsim nyog, ua rau cov neeg siv khoom tau txais tus nqi siab tshaj plaws ntawm tus nqi qis tshaj.

Hull Qauv		Rational qauv, ruaj khov thiab ruaj khov Anti-corrosion txheej, yoog rau cov mob hnyav
Cav		Hom: Cummins / Weichai / Cat yeem Daim ntawv pov thawj marine puv, tsav ncaj qha, 24h kev ua haujlwm, lub zog hloov tau
Dredge Pump		Lub twj tso kua mis dredge yog default rau Shijiazhuang hom. Hnav thiab corrosion resistant, siab txaus thiab lub taub hau, zoo heev marine sealing, muaj zog adaptability thiab customizable.
Cutter taub hau		High-strength alloy steel cutter taub hau, ultra-hnav-resistant; Optimized hniav rau kev txiav zoo.
Hydraulic System		Kev xaiv hom: Rexroth / Denison / Parker / Vickers Hwj chim, tswj meej, marine anti-corrosion foob, ruaj khov & tsis ua haujlwm tsawg
Tswj System		Siemens PLC Real-time parameter saib xyuas, nres thaum muaj xwm ceev & tiv thaiv kev nyab xeeb
Anchor Positioning Qhov system		Spuds & winches rau meej dredging positioning; Guarantee ruaj khov, ua haujlwm raug.

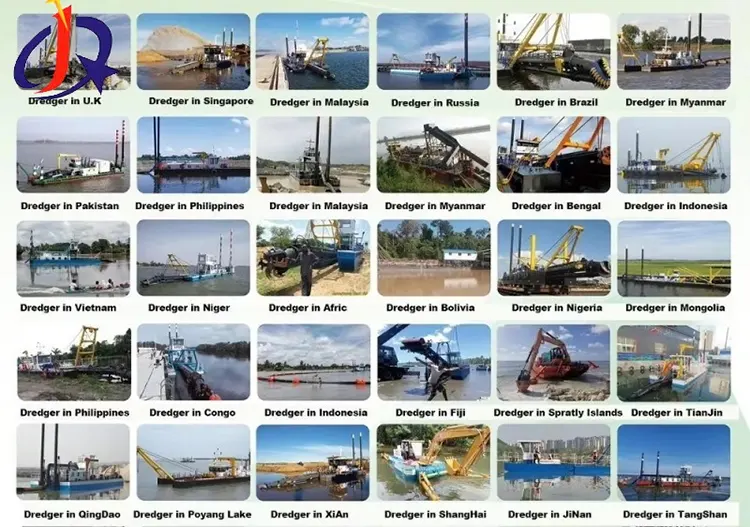

Kev Koom Tes Ua Haujlwm

Cutter Suction Dredging Equipment

Txog Peb

Qingzhou Jinqi Mining Machinery Co., Ltd. yog nyob rau hauv Qingzhou City, Shandong xeev. Raws li kev lag luam pioneer hauv kev tsim khoom, lub tuam txhab tau cog qoob loo tag nrho cov kev lag luam, kev sib koom ua ke R & D, kev tsim khoom thiab kev pabcuam rau hauv ib qho thiab muab kev daws teeb meem rau cov teb xws li dej, pas dej thiab marine dredging, kev loj hlob ntawm ntug dej hiav txwv, kev tu dej, thiab kev ua haujlwm thiab kev saib xyuas ntawm cov dej hauv nroog.

Txais tos tiv tauj peb rau kev daws teeb meem.

Thov qhia rau peb ntawm cov ntaub ntawv hauv qab no thaum ua kev nug:

1. Dab tsi yog qhov dredging qhov tob hauv meters?

2. Qhov kev tso tawm deb li cas hauv meters?

3. Koj puas yuav siv cov cuab yeej txiav cov tshuab nqus dej hauv cov dej ntws, pas dej, dej hiav txwv lossis txoj kev dej?
