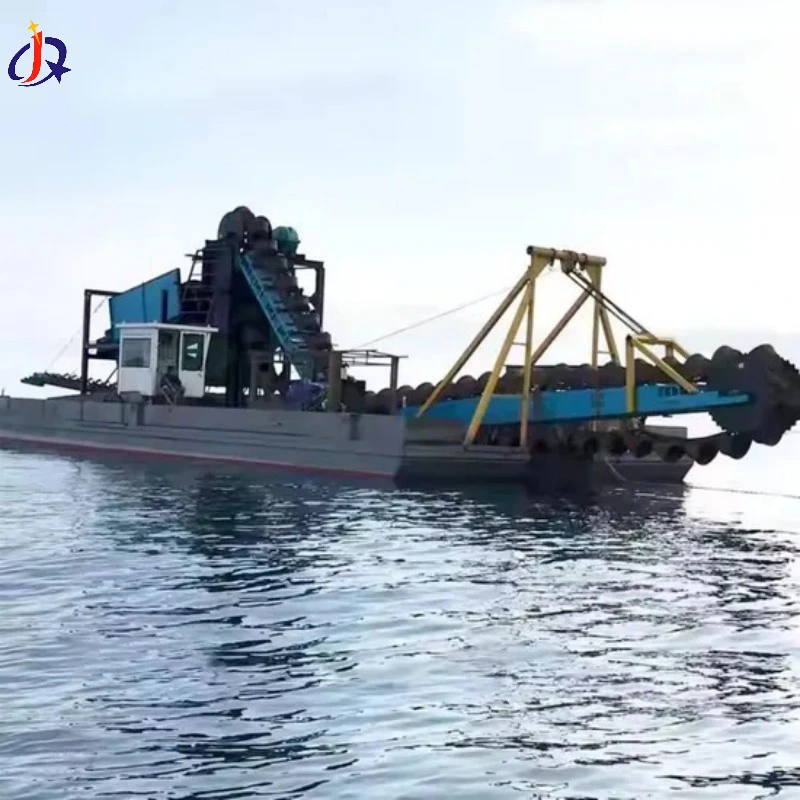

Dej Kub Dredger rau Placer Kub Extraction

Qingzhou Jinqi Mining Machinery Co., Ltd. yog cov chaw tsim khoom thiab txhim khu kev qha ntawm kub dredgers, peb tuaj yeem muab cov khoom lag luam zoo nrog cov kev pabcuam zoo. Peb cov khoom lag luam tseem ceeb, River Gold Dredger rau Placer Gold Extraction, yog tam sim no muaj rau kev muag khoom ncaj nraim, txais tos hu rau peb.

Xa lus nug

Product Description

Qingzhou Jinqi Mining Machinery Co., Ltd., raws li cov chaw tsim khoom thiab cov chaw muag khoom ntawm River Gold Dredger rau Placer Gold Extraction, muab cov kev daws teeb meem zoo rau cov pob zeb kub mining.

Cov khoom no yog tsim rau kev ua haujlwm hauv cov dej ntws, cov pas dej ntiav, thiab lwm yam dej hauv lub cev, kev sib koom ua ke ntau yam xws li kev khawb, tshuaj ntsuam xyuas, ntxuav, sib cais, thiab cov tailings paug. Yog li ntawd, tsis tas yuav tsum tau npaj cov khoom sib cais rau txhua kauj ruam.

Lub hauv paus ntsiab lus tseem ceeb ntawm cov kub dredger txoj haujlwm yog kev sib cais ntawm placer kub siv qhov sib txawv ntawm lub ntiajteb txawj nqus, thiab peb tau ua kom zoo rau kev tsim raws li cov yam ntxwv ntawm cov pob zeb kub deposits thiab mining yuav tsum tau siv nyob rau hauv lub tswv yim.

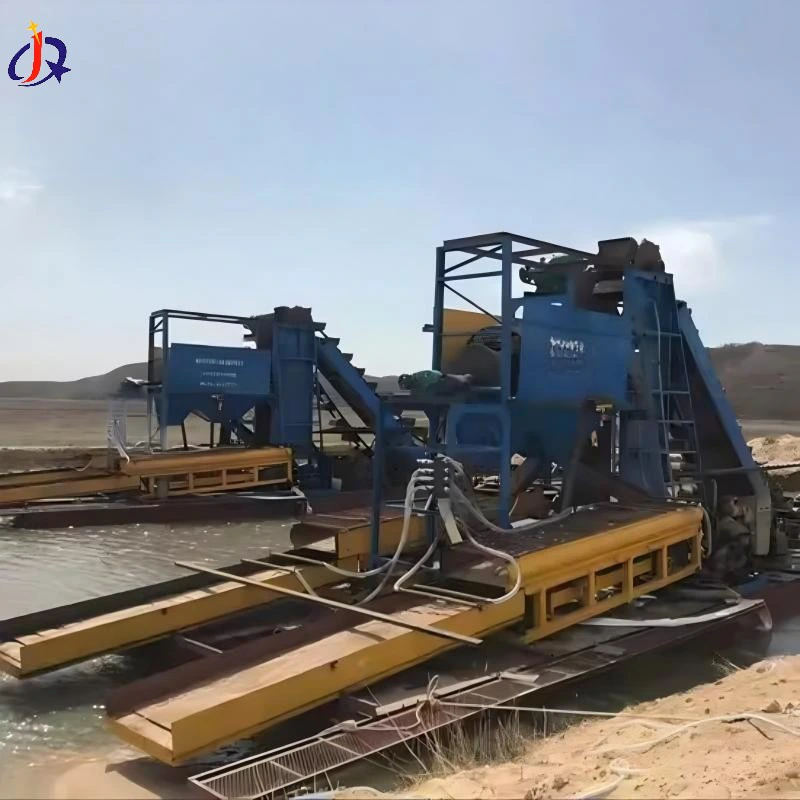

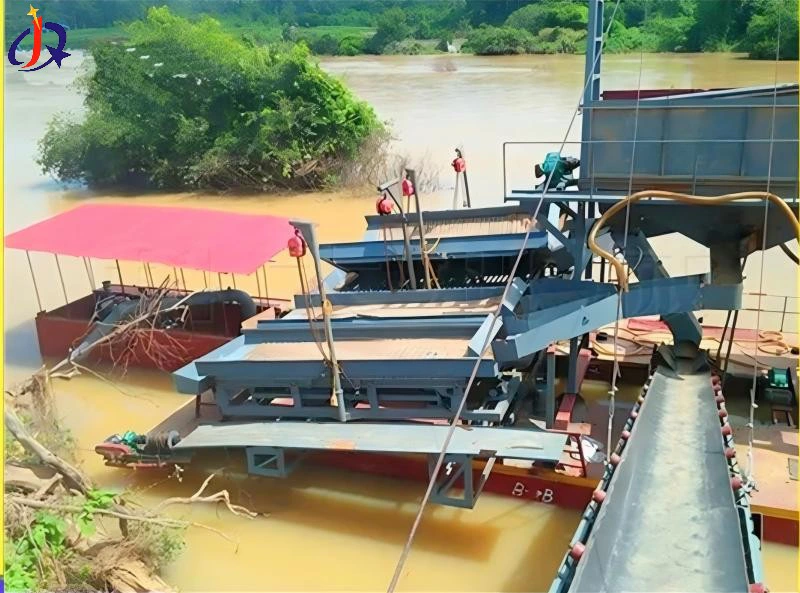

River Gold Dredger for Placer Gold Extraction

Kev sib xyaw ua ke

Txhawm rau kom ua tiav ntau txoj haujlwm hauv ib chav tsev, peb River Gold Dredger rau Placer Gold Extraction integrates ntau lub functional modules uas ua hauj lwm ua ke los tsim ib tug ua tiav mining thiab ua tiav.

Qhov system	Cov ntsiab lus tseem ceeb	Functional Description
Excavation Qhov system	Thoob Chain / Reamer	Lub thoob saw vertically txiav mus rau hauv tus dej txaj kom khawb kub-cov kabmob gravel. Lub cutter-suction mechanism agitates cov sediment thiab ces aspirates nws los ntawm suction kav.
Kev tshuaj ntsuam	Trommel Screen / Vibrating Screen	Cov txheej txheem suav nrog kev faib tawm thiab tsis lees txais cov pob zeb ntxhib loj dua 10-15 hli, thaum khaws cov nplua-grained ore xuab zeb rau tom ntej ore ntxuav.
Ntxuav thiab Kev Pabcuam Qhov system	High-pressure spraying + ore ntxhua khaub ncaws	Cov dej siab siab (0.5-1.2 MPa) strips av nplaum los ntawm qhov chaw kub kub, ua ib homogeneous slurry rau kev ua haujlwm tom ntej.
Sib cais Qhov system	Sluice box + Centrifugal concentrator + Jig cais	Cov nplej kub yog sib cais los ntawm lub teeb pob zeb hauv av los ntawm lub ntiajteb txawj nqus concentration, nrog rau cov nplej kub nyob rau hauv lub concentrate trough.
Tailings Management Qhov system	Tailings tso twj tso kua mis + conveying pipeline	Tshem tawm cov tailings sib cais mus rau thaj chaw uas tau xaiv los tiv thaiv kev sib tsoo thiab sib kis
Kev Pabcuam Qhov system	Hull, propulsion, thiab maneuverability	Lub pontoon-style hull ua kom buoyancy, nrog hydraulic / hluav taws xob propulsion thiab ib qho kev tswj console ua rau ib qho kev pib / nres ua haujlwm.

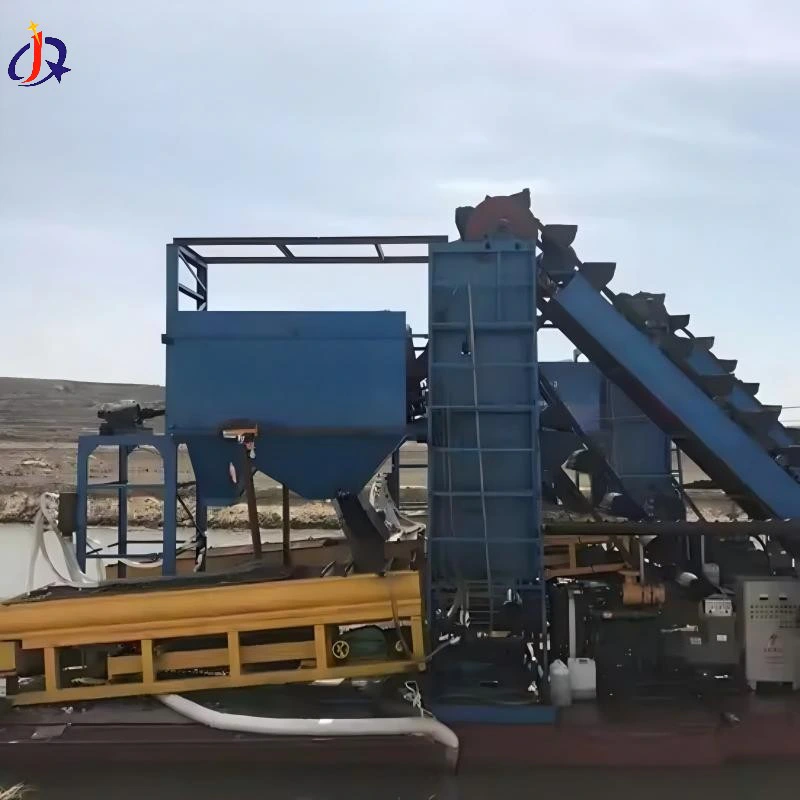

River Gold Dredger for Placer Gold Extraction

Hauv kev siv cov tswv yim, yog tias koj qhov kev khiav hauj lwm qhov tob yog li ntawm 1 txog 30 meters, thiab koj yuav tsum tau ua cov txheej txheem tawv ntxhia uas muaj ntau cov pebbles thiab av nplaum, nrog rau cov xuab zeb mos mos, ces peb pom zoo kom tus Dej Kub Dredger rau Placer Gold Extraction. Nws tuaj yeem ua tau zoo ntawm cov xuab zeb sib xyaw thiab gravel txheej hauv qab ntawm cov dej ntws uas nplua nuj nyob hauv placer kub.

Daim ntawv thov Case

Nyob ib ncig ntawm Lake Baikal, Russia: Suction-hom kub dredger nrog lub peev xwm ua haujlwm ntawm 500m³ ib teev twg thiab tus nqi rov qab ntau dua 90%.

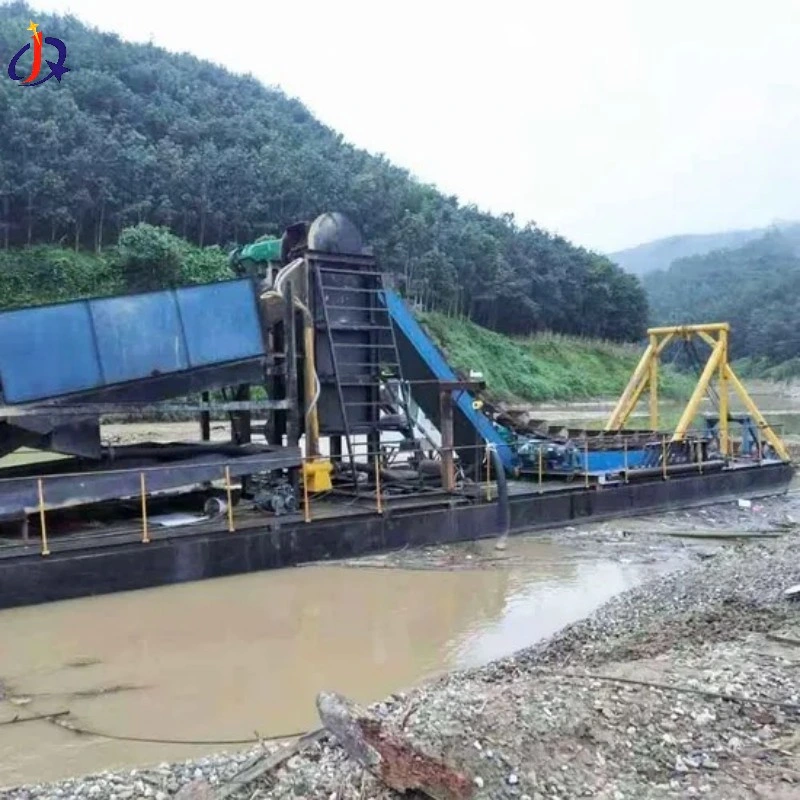

River Gold Dredger for Placer Gold Extraction

Hauv Central Esxias cov dej ntws: Chain thoob-hom kub dredger nrog lub peev xwm ua haujlwm txhua hnub ntawm 1,000 tons, tsim nyog rau kev ua haujlwm mining loj.

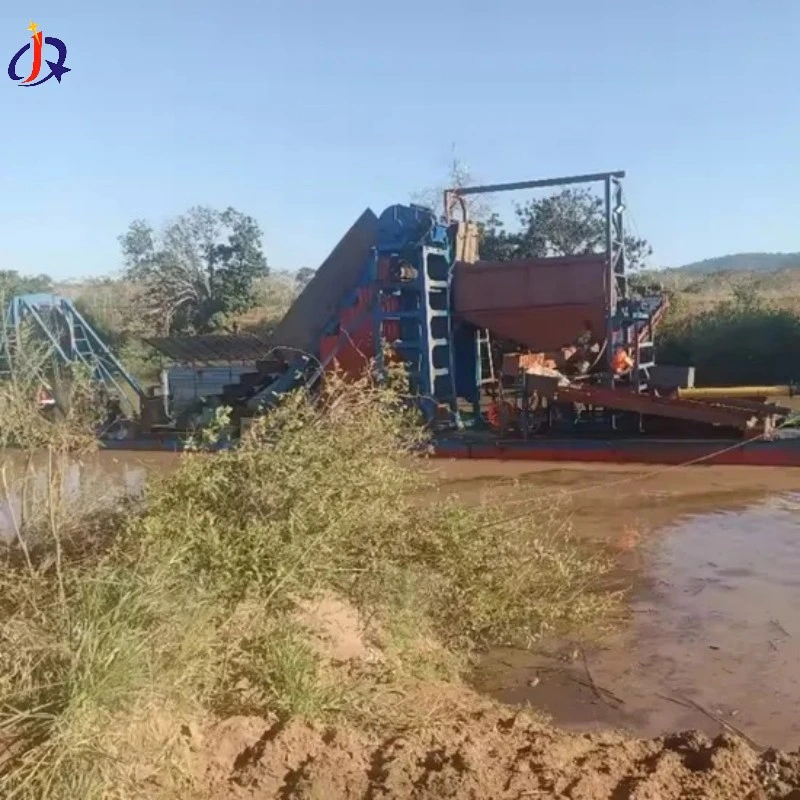

River Gold Dredger for Placer Gold Extraction

Qingzhou Jinqi Mining Machinery Co., Ltd. nruj me ntsis ua raws li "Ib Mine, Ib Txoj Kev" lub tswv yim, xa cov khoom siv kub kub ua kom haum rau txhua tus neeg siv khoom tshwj xeeb. Yog tias koj txaus siab rau peb cov kub dredger, thov hu rau peb.
