Vim li cas thiaj xaiv Cutter Suction Dredger?

2026-02-25 0 Tso lus rau kuv

Phau Ntawv Qhia Qhov Kawg rau Cutter Suction Dredger (CSD) | Qingzhou Jinqi

Phau ntawv qhia dav dav no tshawb txog txhua yam ntawm covCutter Suction Dredger(CSD)- los ntawm nws txoj haujlwm ua haujlwm thiab kev ua haujlwm zoo tshaj plaws rau qhov kev tsim nyog. Txawm hais tias koj yog tus thawj tswj hwm qhov project, ib puag ncig tus kws tshaj lij, lossis tus neeg ua lag luam, koj yuav nkag siab tias vim li cas CSD ua tus thawj tswj hwm lub ntiaj teb dredging. Peb qhia txog qhov zoo, kev txwv, thiab kev siv lub ntiaj teb tiag tiag, ua kom muaj txiaj ntsig los ntawm kev pom zoo los ntawmQingzhou Jinqi Mining Machinery Co., Ltd., ib tug ua chaw tsim tshuaj paus nyob rau hauv hnyav dredging khoom.

📋 Cov Ntsiab Lus

1. Dab tsi yog qhov Cutter Suction Dredger?
2. Lub Cutter Suction Dredger ua haujlwm hauv qab dej li cas?
3. Dab tsi yog qhov zoo ntawm Cutter Suction Dredger?
4. Dab tsi yog qhov tsis zoo lossis kev txwv thaum siv CSD?
5. Cov phiaj xwm twg xav tau lub tshuab txiav txiav tshuab?
6. Yuav ua li cas xaiv txoj cai Cutter Suction Dredger rau koj qhov chaw?
7. Cov lus nug nquag nug txog Cutter Suction Dredger

🔍 1. Lub Cutter Suction Dredger yog dab tsi?

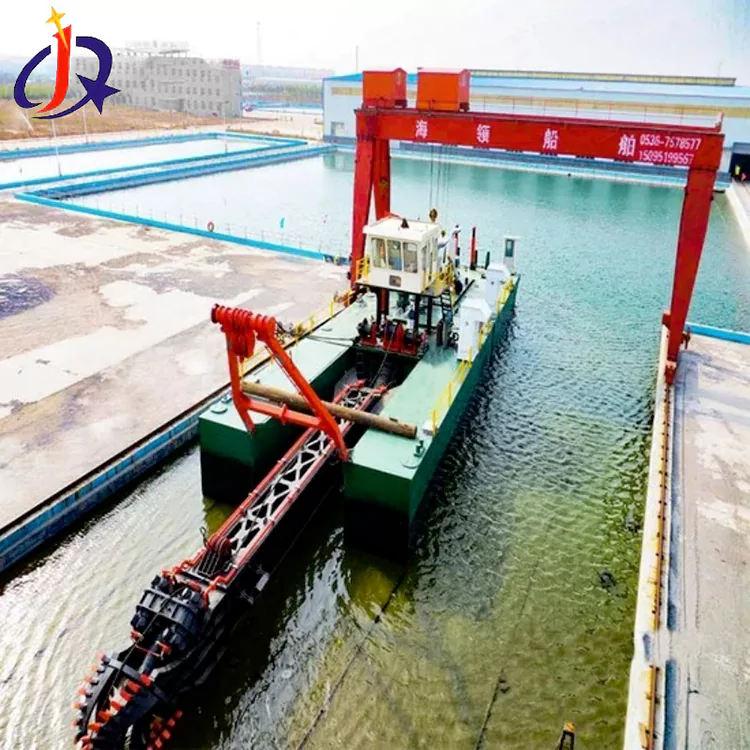

A Cutter Suction Dredger(CSD) yog lub nkoj muaj zog nyob ruaj ruaj uas siv lub taub hau tig lub taub hau kom loosen cov av compacted, pob zeb, los yog sediment, thaum lub twj tso kua mis submersible ib txhij nqus cov slurry los ntawm cov yeeb nkab nqus thiab tso tawm ntawm cov raj xa mus rau qhov chaw pov tseg. Tsis zoo li lub tshuab nqus tsev twj dredgers, lubCutter Suction Dredgerexcels nyob rau hauv cov ntaub ntawv nyuaj - av nplaum, gravel, xuab zeb, 甚至 weathered pob zeb.Qingzhou Jinqi Mining Machinery Co., Ltd.tau ua kom zoo dua CSD tsim kom ua tiav qhov ua tau zoo tshaj plaws nrog tsawg kawg downtime.

Cov dredgers no feem ntau tsis yog tus kheej-propelled; lawv pivot ntawm ib tug spud ncej (txheej txheem ncej) thiab viav vias los ntawm sab mus rau sab siv sab winches, txiav txheej zoo li ib tug neeg kho tshuab excavator underwater. Kev tsim kho muaj zog thiab siab torque cutter ua rau CSD cov neeg ua haujlwm ntawm cov av reclamation, chaw nres nkoj, thiab cov haujlwm tsuas.

⚙️ 2. Lub Cutter Suction Dredger ua haujlwm hauv qab dej li cas?

Lub voj voog ua haujlwm tuaj yeem tawg mus rau hauv cov kauj ruam sib koom ua ke. ACutter Suction Dredgerua haujlwm nws tus kheej siv ob lub spuds (ib qho ua haujlwm spud, ib pab txhawb nqa). Lub taub hau cutter tig thiab khawb rau hauv cov khoom, thaum lub dav hlau dej qee zaum pab kom cov av. Cov khoom sib tov (khoom + dej) nkag mus rau hauv lub qhov ncauj nqus thiab nqus los ntawm lub raj xa dej uas tuaj yeem txuas mus rau ob peb kilometers. Lub dredger swings nyob rau hauv ib tug arc los ntawm winching cables anched rau ntug dej los yog pawg. Lub spud system tso cai rau txav mus tom ntej tom qab txhua qhov txiav.Qingzhou Jinqi Mining Machinery Co., Ltd.tsim CSDs nrog automation siab heev los tswj lub viav vias ceev, cutter rpm, thiab twj tso kua mis concentration, maximizing ntau lawm txawm nyob rau hauv heterogeneous thaj chaw.

✅ 3. Dab tsi yog qhov zoo ntawm Cutter Suction Dredger?

🌟 Qhov zoo tshaj plaws

Kev tsim khoom siab hauv cov khoom siv tawv:Cutter tuaj yeem cais cov av nplaum, coral, thiab pob zeb mos.
Kev ua haujlwm tsis tu ncua:Dredges 24/7 nrog tsawg nres.
Precision txiav:Zoo tagnrho rau cov chaw kaw ze ze cov chaw nres nkoj lossis cov qauv.
Kev tawm mus ntev:Pipeline thauj khoom tshem tawm cov nkoj.
Tsawg turbidity:Mechanical txiav txo qhov ncua kev kawm ntawv piv rau cov suction dawb.
Customizable los ntawm me me mus rau mega-loj:Qingzhou Jinqi muab CSD los ntawm 8-nti mus rau 36-nti.

⚠️ Nthuav qhov tsis zoo

Qhov chaw nres tsheb:Yuav tsum tau tsiv los ntawm tug los yog tus kheej winches; tsawg mobile tshaj li trailing hopper.
Pipeline obstruction Risk:Cov khib nyiab tuaj yeem thaiv qhov nqus.
Qhov tob txwv:Feem ntau npaum li 25-30m; Tsis tas li ntawd, kev pab cuam submerged twj tso kua mis xav tau.
High pib peev:Heavy-duty cutter thiab twj tso kua mis nce CAPEX.
Nthuav dav rhiab heev:Tej zaum yuav xav tau kev npaj dredging rau kev nkag.

📊 Cutter Suction Dredger - Muaj peev xwm Snapshot (Qingzhou Jinqi Qauv)
Max. Dredging Qhov tob	6-30m (kev cai engineered)
Cutter zog	30 kW - 1200 kW
Tshem tawm qhov deb	Mus txog 4000 m (nrog lub twj tso kua mis)
Hom tso zis	200 - 4500 m³ / h (nyob ntawm cov av)
Nyiam thov	Dej, pas dej, chaw nres nkoj, av reclamation

🧐 4. Dab tsi yog qhov tsis zoo lossis kev txwv thaum siv CSD?

Txawm tias nws versatility, lubCutter Suction Dredgertsis yog universal tov. Nws txoj kev cia siab rau lub raj xa dej ua rau nws tsis tsim nyog rau cov dej qhib nrog kev thauj mus los ntev tshwj tsis yog ntxiv cov boosters. Tsis tas li ntawd, lub taub hau cutter hnav sai sai hauv cov ntaub ntawv abrasive, yuav tsum tau saib xyuas tsis tu ncua - qhov tseem ceeb txo los ntawmQingzhou Jinqi Mining Machinery Co., Ltd.los ntawm hardened chromium carbide overlay. Lwm qhov txwv: lub dredger yuav tsum tau anched; muaj zog tam sim no lossis nthwv dej tuaj yeem nres ntau lawm. Rau qhov tob excavations tshaj 30m, ib tug submerged twj tso kua mis version yog yuav tsum tau, nce complexity. Txawm li cas los xij, rau 80% ntawm cov dej num hauv av thiab ze ntug dej, CSD tseem tsis sib xws.

🌍 5. Yam Uas Yuav Tsum Tau Cutter Suction Dredger?

Los ntawm cov av reclamation hauv Dubai mus rau xuab zeb mining hauv Nyab Laj, CSD yog qhov tseem ceeb. Cov kev siv ib txwm muaj xws li:

Chaw nres nkoj & chaw nres nkoj tob- tshem tawm cov av nplaum thiab tawv av nplaum.
Av reclamation- tso xuab zeb ncaj qha mus rau thaj chaw reclamation.
Reservoir dredging- restores dej cia peev.
Mineral extraction- tin, kub, lossis hnyav ntxhia xuab zeb.
Kev kho ib puag ncig- Kev tshem tawm cov av paug nrog qhov tseeb.
Cov kwj dej thiab kev tu dej- khaws cov channel navigation qhib.

📏 6. Yuav Ua Li Cas Xaiv Txoj Cai Cutter Suction Dredger rau Koj Qhov Chaw?

Kev xaiv CSD suav nrog cov khoom siv, tus nqi tsim khoom, thiab kev tawm mus deb.Qingzhou Jinqi Mining Machinery Co., Ltd.qhia:

Hom khoom	Pom zoo Cutter zog	Dredge Size Piv txwv
Xuab zeb / silt	Tsawg (50-150kW)	10-nti / 250 kW twj tso kua mis
Nthuav av nplaum / gravel	Nruab nrab (200-400 kW)	14-18 nti / 500-800 kW
Weathered pob zeb / coral	Siab (> 500 kW)	20-28 nti / 1000+ kW

Kuj xav txog qhov system spud: tsau spud rau ntiav, taug kev spud rau qhov chaw tas mus li. Nco ntsoov nrog tus kws tshaj lij; Qingzhou Jinqi muaj kev ntsuam xyuas qhov project dawb.

❓ 7. Cov lus nug nquag nug txog Cutter Suction Dredger

❔ Lub Cutter Suction Dredger puas tuaj yeem ua haujlwm hauv pob zeb nyuaj?

Yog, tab sis nrog kev txwv. Standard CSD txiav weathered los yog mos pob zeb (≤ 10 MPa). Rau cov pob zeb nyuaj, ib qho tshwj xeeb hnyav-duty cutter nrog pob zeb txiav hniav (point nres picks) thiab siab torque yog xav tau.Qingzhou Jinqi Mining Machinery Co., Ltd.manufactures reinforced CSD nrog cutter fais fab mus txog 1200 kW, muaj peev xwm excavating limestone thiab sandstone. Txawm li cas los xij, rau loj basalt, drilling thiab blasting yuav ua ntej dredging.

❔ Dab tsi yog qhov siab tshaj plaws ntawm cov twj tso kua mis ntawm Cutter Suction Dredger?

Ib tug standalone CSD feem ntau twj 500-2000 m. Nrog rau cov chaw nres tsheb nruab nrab, qhov kev ncua deb tuaj yeem tshaj 6 km. Txoj kab uas hla ntawm cov kav dej, cov khoom concentration, thiab lub taub hau poob txhais tau tias muaj pes tsawg. Qingzhou Jinqi tsim cov pob khoom txhawb nqa rau kev rov qab mus ntev kom tswj tau qhov ua tau zoo. Lawv cov engineers suav cov twj tso kua mis zoo tshaj plaws rau txhua qhov haujlwm.

❔ Lub tshuab nqus tsev nqus dej zoo li cas piv rau lub tshuab nqus tsev nqus dej twj tso kua mis?

CSD yog nyob ruaj ruaj, txiav cov ntaub ntawv nyuaj, thiab cov twj tso kua mis ntawm cov kav dej - zoo meej rau thaj chaw kaw thiab tso tawm tas. Trailing hopper dredger yog mobile, nqus cov khoom xoob thaum caij nkoj, thiab nqa cov khoom thauj mus rau qhov chaw pov tseg. Rau kev tu channel hauv hiav txwv qhib, kev taug qab zoo dua; rau precision excavation nyob ze cov qauv, CSD yeej. Ntau qhov project loj siv ob qho tib si.Qingzhou Jinqi Mining Machinery Co., Ltd.muab ob hom, kom ntseeg tau cov lus qhia tsis ncaj ncees.

❔ Lub tshuab nqus dej twj tso kua mis yuav tsum tau tu dab tsi?

Cov khoom siv tsis tu ncua: cutter hniav (hloov txhua 200-600 teev nyob ntawm kev puas tsuaj), twj impeller, liner, thiab lub qhov ncauj nqus. Spud bearings thiab winches xav tau greasing. Qingzhou Jinqi tsim cov ntsiab lus saib xyuas yooj yim, thiab muab cov khoom siv khoom seem thoob ntiaj teb. Teem sijhawm soj ntsuam ntawm hydraulic systems thiab cutter tsav yog ib qho tseem ceeb kom tsis txhob tawg.

🏭 Npaj los txhawb koj qhov project dredging nrog lub ntiaj teb-class Cutter Suction Dredger?

Qingzhou Jinqi Mining Machinery Co., Ltd.muab cov kev daws teeb meem los ntawm 8-nti mus rau 36-nti CSD, nrog rau ntawm qhov chaw ua haujlwm thiab kev cob qhia.Tiv tauj peb.

📚 References & Nyeem ntxiv

International Association of Dredging Companies (IADC) - Cutter Suction Dredger daim ntawv tseeb
Qingzhou Jinqi Mining Machinery Co., Ltd.- Cov khoom lag luam CSD raug cai & kev qhia tshwj xeeb (daim ntawv qhia)
PIANC – Dredging and Port Construction Guidelines
ResearchGate: "Kev soj ntsuam kev ua tau zoo ntawm cutter suction dredger hauv heterogeneous av"
